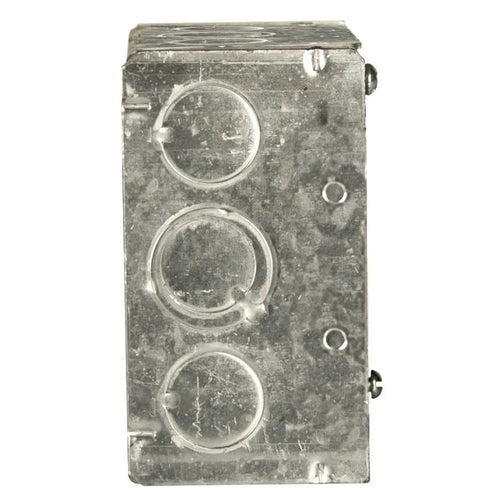

Hubbell Raco Square Box Welded Deep KO's & Six TKO's Raised Ground
SKU: 455147
Available Inventory: 19
Model: 8232
Square Box, Welded, 2-1/8 in. Deep, Ten 1/2 in KO's & Six TKO's, Raised Ground
Designed to enclose electrical wiring, switches, receptacles or lighting fixtures. Constructed from 1/16 in. pre-galvanized steel. 8-32 cover mounting screws assembled. Suitable for use without a bonding jumper in circuits up to 600V.
- Combination screw heads allow quick installation
- Welded construction
- Ten 1/2 in KO's & Six TKO's
- UL Listed
- 30.3 cu. in. capacity
- Raised ground
- Acceptable in 2-hour fire rated walls
- UPC barcoded
Product Details
General
| Bracket Type | No Bracket |
| Drawn or Welded | Welded |
| Fire Resistance | Yes |
| Knockouts | 1/2 in;1/2 - 3/4 in Combination (TKO) |
| Material | Steel |
| Number of Gang(s) | 2-Gang |
| Type | Box |
| Wiring System | Conduit |
Dimensions
| Actual Depth | 2.434 in |
| Cubic Capacity | 30.3 cu.in |
| Depth | 2.125 in |
| Height | 4 in |
| Raised Ground | Yes |
| Weight | 0.884 lb |
| Width | 4 in |
Electrical Ratings
| Power Distribution Features | Fire Rated |
Certifications and Compliance
| Certified Listed | UL Listed |
Logistics
| Carton Quantity | 25 |
| Packaging Type | No Packaging |
| Pallet Quantity | 1750 |
